Mastering Hypodermic Needle Dimensions: Gauge vs. Length

According to the Centers for Disease Control and Prevention (CDC), nearly 38.4 million Americans are diabetic. Among them, many are bound to administer insulin subcutaneously before every meal. To do so, a hypodermic needle of a suitable gauge size and length is necessary that could not only deliver the exogenous hormone but also cause minimal pain to the patient. In this regard, the right product can be selected after going through all the hypodermic needle dimensions. But what are the available options, and how do you choose the right one?

Finer hypodermic needles are used during cosmetic procedures

In this article, we will dive into the hypodermic needle dimensions, including their gauge sizes as well as lengths. In addition, some of the well-known hypodermic needle brands have also been linked for the reader’s convenience.

What are Hypodermic Needles?

Hypodermic needles are the invasive medical tools that are employed for taking samples of blood or bodily fluids from patients or administering fluids via intravenous, intramuscular, or subcutaneous routes. These hypodermic needles have a thin diameter and are hollow from the inside. Owing to their ultra-thin design, skin penetration becomes pain-free and, therefore, patient compliance is increased.

Understanding Hypodermic Needle Dimensions

When it comes to learning about the hypodermic needles, it is inevitable to go through their gauge sizes and lengths. Therefore, the following section focuses on these two factors in detail:

Needle Gauge

Gauge, denoted by ‘G’, indicates the outer diameter (OD) of the hypodermic needle. These gauge numbers have been standardized by the Birmingham Wire Gauge (BWG) system and range from 7 to 33.

A higher gauge number shows that the needle is thinner, while a smaller gauge number shows a thicker needle. The hypodermic needles are color-coded so that different gauges can be easily identified. The following table mentions some of these gauge sizes along with their designated colors:

Gauge (G)	Color
16	White
18	Pink
19	Cream/Beige
20	Yellow
21	Green
22	Black
23	Blue
25	Orange
26	Brown
27	Grey
30	Yellow

Hypodermic Needle Dimensions: Gauge Sizes and Their Uses

A different gauge size means a different thickness of the hypodermic needle, which leads to a different application of the product. In this section, different gauge sizes have been mentioned along with their properties as well as applications:

18 to 20 Gauge

When it comes to understanding hypodermic needle dimensions, keep in mind that the smaller the gauge size, the thicker the needle. Therefore, hypodermic needles ranging from size 18 to 20 are the thickest of all the available options.

Applications

These are suitable for handling and injecting high viscosity liquids.
Items with hypodermic needle dimensions ranging from 18 to 20 gauge also offer rapid fluid delivery.
These products can also be employed for collecting blood samples and dispensing them into vials with the help of a repeater pump.

21 to 23 Gauge

Among the hypodermic needle dimensions, another option is the products that come with a gauge size ranging from 21 to 23. These are neither too thick nor too thin and fall in the middle range.

Applications

These hypodermic needle dimensions are considered suitable for injecting medications via the intramuscular as well as subcutaneous route.
These hypodermic needles can be employed for the delivery of hormones, vaccines, and antibiotics.

Hypodermic needles can also deliver vaccines

25 to 27 Gauge

The gauge sizes that range from 25 to 27 are thinner in diameter and, therefore, suitable for delivering medications with minimum pain. This way, patient comfort is enhanced.

Applications

Products with the above-mentioned hypodermic needle dimensions are ideal for subcutaneous injections.
Medications, like insulin, can be easily delivered.
The hypodermic needles with 25 to 27 gauge size are also preferred for giving allergy shots.
Their use in administering pediatric vaccines is prominent.

30 + Gauge

Among all the hypodermic needle dimensions available, those with a gauge size of 30 or above are the thinnest and smallest. The biggest advantage they offer is that the pain associated with their insertion is minimal. In addition, precise dosing is also ensured.

Applications

The products with 30 + hypodermic needle dimensions are ideal for cosmetic dermatology.
These are also suitable for neonatal applications such as the delivery of vaccines to infants, etc.
Fine dosing is also an advantage associated with these hypodermic needles. An example in this regard is the administration of botulinum toxin.

Summary

When it comes to summarizing the hypodermic needle dimensions, the following table enlists the gauge sizes according to their suitability for different tasks:

Applications	Recommended Gauge
Withdrawal of viscous compounds	16G to 20G
Transferring between sterile containers	18G to 23G
Drawing from vials/ampoules	20G to 25G
Precision dosing into syringes	25G to 30G

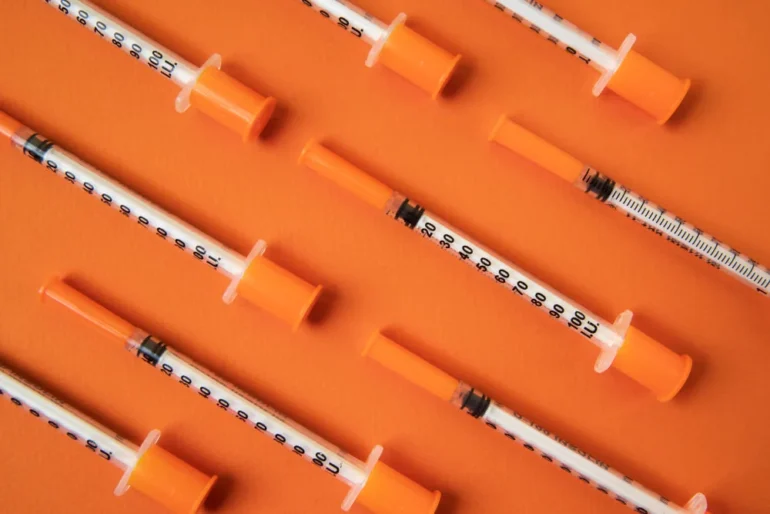

Shorter hypodermic needles are preferred for subcutaneous insulin delivery

Needle Length

While learning about the hypodermic needle dimensions, needle length is another important parameter. It is the length of the needle that decides whether the product can be employed on an area or not.

In general;

Hypodermic needles ranging from 1 to 1.5 inches are considered ideal for intramuscular medication delivery.
Items with 3/8 to 5/8 inches needle length can be employed for subcutaneous as well as intradermal delivery.

Based on their needle lengths, let us explore more about the applications of these hypodermic needles:

Intramuscular Use

In case of intramuscular medication delivery, the liquid medication is to be injected deeper into the muscle tissue. This requires a stronger and sturdier needle that could tolerate the pressure and penetrate to reach the target area.

Therefore, the suitable hypodermic needle dimensions for this task are a 1 to 1.5-inch-long needle with a gauge size of 20G to 25G.

Subcutaneous Use

In subcutaneous drug delivery, the medications are delivered under the skin where the fatty tissue lies. As this is an easy-to-reach area, needles with a shorter length of ½ to 5/8 are considered suitable. Apart from these, gauge sizes between 25G and 30G should be preferred.

Relationship Between Gauge Size and Needle Length

While learning about the hypodermic needle dimensions, it should be kept in mind that not all gauge sizes are available with all needle lengths. The products with a higher gauge number indicate a thinner needle that comes with a shorter length. Similarly, the hypodermic needles with larger gauge numbers are thicker and come with longer needles.

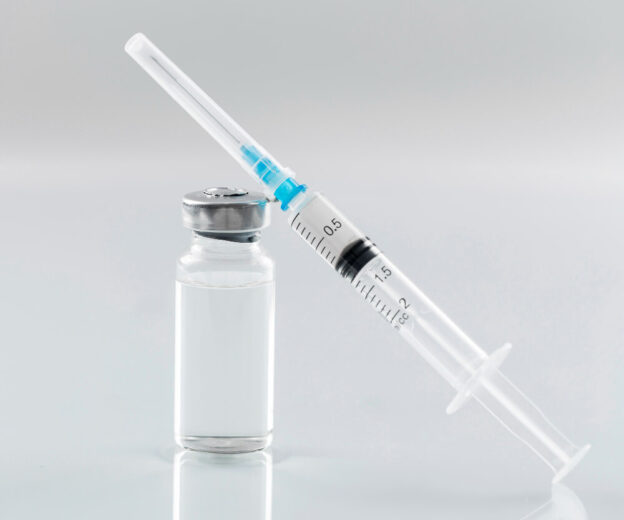

Parenteral medication delivery reduces the side effects in the gastrointestinal cavity

Hypodermic Needles at Health Supply 770: Features and Specifications

Hypodermic needles are the instruments that are employed for the delivery of liquid medication to patients. In addition, these can also draw blood or fluid samples for diagnostic purposes. As these hypodermic needles are available in different gauge numbers and lengths, the selection of the product, depending upon the intended application, becomes possible.

When it comes to learning about hypodermic needle dimensions, it is also essential to look into some of the products that many brands manufacture. Some of these well-known brands are also available at Health Supply 770 and have been detailed below, along with their features and purchase links:

Medline Standard Hypodermic Needles 30G x 0.5 Inch Regular Bevel (SYR100302)

US$66.88

Product Details

Medline standard hypodermic needles are the items that are used in all healthcare facilities, including hospitals, clinics, pharmacies, etc. These have a precise design that ensures an accurate medication delivery. The product also minimizes the pain of the injection as it has a finer gauge size.

While learning about the hypodermic needle dimensions, the gauge size and length of the needle are the primary concerns. In this regard, these Medline standard hypodermic needles are half (0.5) inches long and have a gauge size of 30G. Furthermore, to ease the skin penetration, the product comes with a regular bevel tip. As for their price, these are budget-friendly items. Each box of these Medline standard hypodermic needles contains 100 pieces.

EasyTouch® 25G x 1.5″ Hypodermic Needle – Sterile, Single-Use, 100/BX 6BX/CS

US$41.88

Product Details

EasyTouch® 25G x 1.5″ hypodermic needles are designed to deliver liquid medications via the intramuscular route. These have a suitable needle length and gauge size to penetrate deeper into the body tissues and administer medication at the target area. Due to their compatibility with Luer lock and slip tip mechanisms, these hypodermic needles can be used with many different kinds of syringes.

Moreover, these EasyTouch® 25G x 1.5″ hypodermic needles come in a gauge size of 2.5G and have a needle length of 1.5 inches. Owing to these hypodermic needle dimensions, the items do not cause pain or discomfort while the medication is being administered. In addition, skin penetration is easier due to the tri-bevel shape of the needle tip.

While learning about the hypodermic needle dimensions, the safety of the product is a major concern. In this regard, these EasyTouch® 25G x 1.5″ hypodermic needles are free from all kinds of allergens, including latex. This way, these products are suitable for people who have a known hypersensitivity to such materials.

Overall, these EasyTouch® 25G x 1.5″ hypodermic needles are one of the finest products available in the market and are widely employed within hospitals, pharmacies, outpatient clinics, etc. for the delivery of vaccines and hormonal therapy.

Sol-Millennium 113010B Sol-M Hypodermic Needle 30 Gauge 1 Inch (Bulk, Non-sterile) (10000/CS)

US$445.61

Product Details

Sol-Millennium 113010B Sol-M hypodermic needles are one of the products from the extensive line of similar items, all of which vary depending upon the needle length as well as gauge size. The product offers a smoother skin penetration that is ensured by the tri-bevel tip.

Moreover, while learning about the hypodermic needle dimensions, the construction material of the product is also looked into. In this regard, these Sol-Millennium 113010B Sol-M hypodermic needles are constructed using medical-grade stainless steel that is strong and durable.

Additionally, the color-coded needle hubs of these Sol-Millennium 113010B Sol-M hypodermic needles allow the healthcare provider to easily identify one gauge size from the other. This feature is in accordance with the ISO-6009, based on the criteria set by the Occupational Safety and Health Administration (OSHA).

Furthermore, as the product is sterile, it does not elevate the risk of an infection at the site of injection. In addition, a translucent hub is also affixed for flashback confirmation. The product is also compatible with almost all kinds of syringes due to its compatibility with standard Luer Lock as well as Luer Slip connectors. In the above-mentioned price, 1000 top-quality hypodermic needles are available.

*Note: The prices of these items mentioned in the article are taken from the Health Supply 770 website. These may vary over time.

Finer hypodermic needles are used for Botox

The products mentioned in this article, while learning about the hypodermic needle dimensions, along with many other medical supplies, can be purchased from Health Supply 770, a reliable name when it comes to medical products. They have a 30-day money-back guarantee and provide your products to you in the shortest possible time. Click the link at the end of the article to check the wide range of hypodermic needles.

Conclusion

Hypodermic needles are the products that are employed for the delivery of liquid medications to patients. These are stainless steel-based items that are sterile and safe for use among patients with allergies.

While learning about the hypodermic needle dimensions, it is essential to look into the gauge sizes as well as the needle lengths. A suitable product should be selected based on the patient’s age as well as the type of injection to be administered. For instance, longer needles with smaller gauge numbers are used for intramuscular medication delivery, while those with a shorter needle and a relatively thinner gauge are ideal for subcutaneous drug administration.

Considering their importance, hypodermic needles should be kept in healthcare facilities for use whenever necessary. For purchasing different types of hypodermic needles, reliable vendors like Health Supply 770 should be approached. They ensure the provision of quality products along with satisfactory services.
